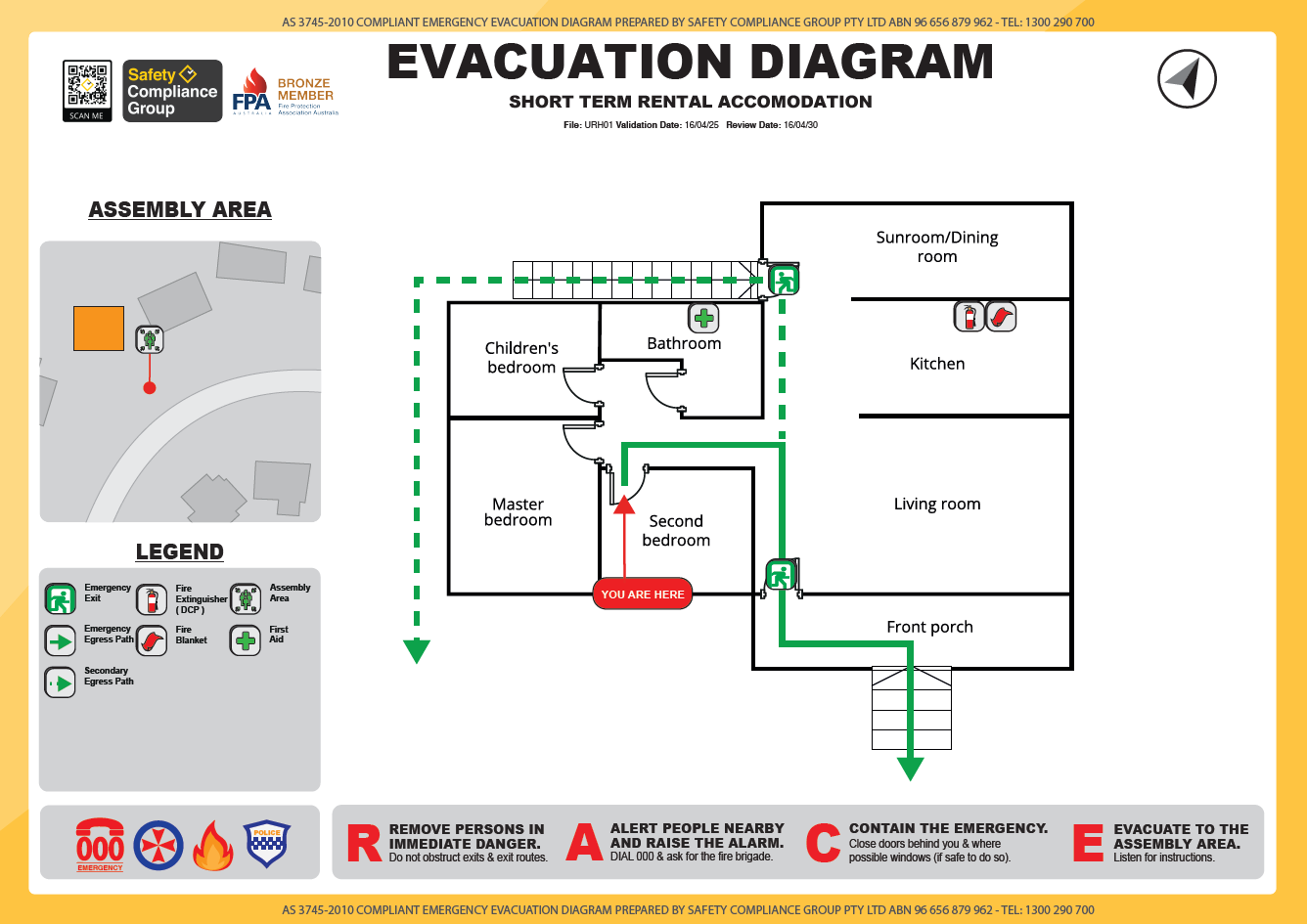

The following must be included in each emergency evacuation diagram as a minimum but there are other items that can be included in certain situations:

• A pictorial representation of the floor or area, of specific minimum dimensions
• The title ‘Evacuation Diagram’
• The ‘you are here’ location/s
• The designated exits in the facility, which must be shown in green and uses the correct pictograms

The following communications equipment, if installed, should also be shown:

• Warden intercommunication points
• Manual call points, which shall be red, and emergency call points
• Main controls/panels for the occupant warning equipment
• Hose reels
• Hydrants
• Extinguishers, which shall be the appropriate colour as specified in as/nzs 1841.1.
• Fire blankets
• Fire indicator panel (FIP), if provided
• Refuges, if present
• Validity date
• Location of assembly area(s)
• A legend, which shall reflect the symbols used

Evacuation plans are mandatory for all Australian workplaces and multiple residency buildings.

The work health and safety legislation requires a person conducting a business or undertaking (PCBU) to provide evacuation procedures for workers and occupants of a facility.

At Safety Compliance Group, we specialise in providing fully compliant diagrams to all types of workplaces, strata, and facilities throughout Australia. The Australian standard for planning for emergencies in facilities – as 3745-2010 was developed in 2010 with the objective to “enhance the safety of people in facilities, by providing a framework for emergency planning”.



Standards are regularly amended to include more guidance for best practice. should you require any assistance or further guidance regarding these changes, please do not hesitate to contact us.

It is crucial that the orientation, position and location of emergency evacuation diagram maps are compliant with the Australian Standard 3745:2010. You must be sure that the locations have been well considered and are installed correctly.

The Australian Standard for Planning for emergencies in facilities – AS 3745-2010 was developed in 2010 with the objective to “enhance the safety of people in facilities, by providing a framework for emergency planning”. Standards are regularly amended to include more guidance for best practice.

Yes, we can still help you to meet your obligations under SafeWork Australia and AS3745-2010 Planning for emergencies in facilities and AS4083-2010 Planning for emergencies in health care facilities.

We can visit the site and draft floor plans for simple layouts or refer to a range of professionals to get the plans created and the diagrams produced.

Contact us for more information.
